Glass Bottle Filler





Introduction :

our filling machines are efficient,operator friendly and maintainence free due to superior technology.

Bottle Filling Machinery :-

This  is highly versatile machine for filling foamy as well as other liquids into containers. It has a unique bottle separation method in which no turret or holding slides are used. This machine fills the liquid using the Syringe principle and is very easy to use. Turntable is provided for bottle filling.



Model SCSD 12-6 SCSD 18-6 SCSD 24-8
Heads of filling & Crowning 12-6 18-6 24-8
Production capacity 500 ml.(bottle/hour) 2500-3000 bottles/hr 4000-5000 bottles/hr 7000-8000 bottles/hr
Suitable bottle height 200ml - 2 ltr 200ml -2 ltrs 200ml -2 ltrs
Filling temperatue 0-4 C 0-4 C 0-4 C
Filling Type Counter Pressure Filling
Dimension 1550 X 1350 1550 X 1350 1800 X 1500
Weight (approx) 2500kg. 3000kg. 3500kg



Introduction :

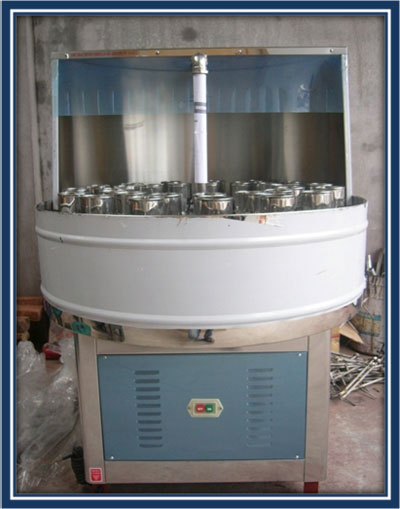

CP-24 semi-automatic bottle washer is used to wash PET bottles. The capacity of it is 2000B/h.

MODEL NO. CP 24
Production Capacity 2000b/h
Rinsing Head 24
Working Pressure 0.2-0.4Mpa
Power 0.75kw
Weight 350kg
Overall Dimensions 980*800*130mm
