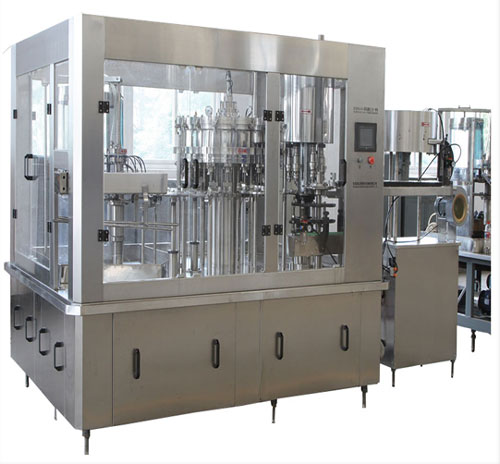

Carbonator Filler




Introduction :
This machine is a unique design combining the three machines of bottle washing , filling and capping in one to decrease main power ,
to save space and to diminish the air pollution among the three machines. It is applicable for carbonated drinks filled in plastic bottles and capped with plastic caps, with optional capacity from 2500 BPH to 12000BPH.

Features :

1. It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.

2. Adopting suspensory transmission gear can easily upkeep and be repaired.

3. The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.

4. It uses frequency changer to conrtol the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.


Model SCSD 12-12-6 SCSD 18-18-6 SCSD 24-24-8 SCSD 32-32-10
Heads of washing, filling, sealing 12-12-6 18-18-6 24-24-8 32-32-10
Production capacity 500 ml.(bottle/hour) 2500-3000 bottles/hr 4000-5000 bottles/hr 7000-8000 bottles/hr 9000-12000 bottles/hr
Suitable bottle height 200ml - 2 ltr 200ml -2 ltrs 200ml -2 ltrs 200ml -2 ltrs
Filling temperatue 0-4 C 0-4 C 0-4 C 0-4 C
FILLING TYPE COUNTER PRESSURE FILLING
Suitable Cap Shape Plastic Screw Caps
Total Power 5.03 kw 5.03kw 6.57kw 8.07 kw
Spraying pressure(MPa) 0.2-0.25 0.2-0.25 0.2-0.25 0.2-0.25
Dimension 2100 X 1500 X 2200 2450 X 1800 X 2200 2750 X 2180 X 2200 3600 X 2200 X 2600
Weight 3000kg. 4000kg. 6000kg. 10000kg.

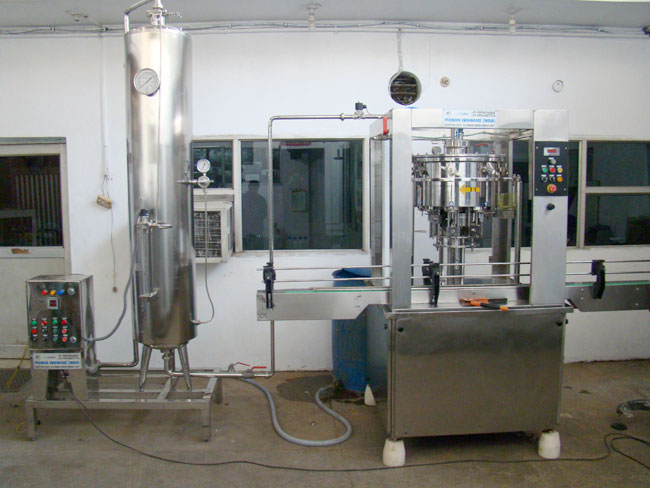

Model SW-CP 8 SW-CP 9 SW-CP 12 SW-CP 18
Heads of filling 8 9 12 18
Production capacity  1100 BPH 1300 BPH 2000 BPH 2000 BPH
BOTTLE LOADING MANUAL LOAD MANUAL DISCHARGE AVAIL WITH AUTO LOAD AUTO DISCHARGE
FILLING TYPE COUNTER PRESSURE
Filling temperatue 0-4 C
Dimension 1100 X 1100 X1890 1100 X 1100 X1890
Weight (APPROX) 400 KG 600 KG 800 KG 1000 KG

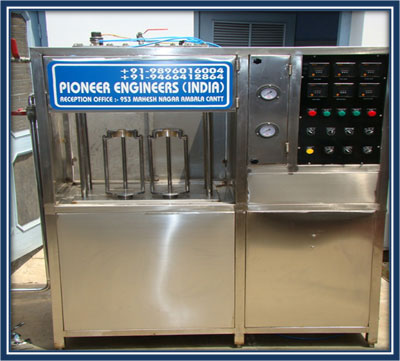

Model  2 HEAD FILLER  4 HEAD FILLER
Heads of filling  2  4
Production capacity 500 ml.(bottle/hour) 450-500 bottles/hr 750-800 bottles/hr
Suitable bottle height 200ml - 2 ltr 200ml - 2 ltr
FILLING TYPE COUNTER PRESSURE FILLING
Filling temperatue 0-4 C 0-4 C
Dimension 1100 X 1100 1100 X 1100
Weight (APPROX) 600kg. 750kg.
