Packaging Machine

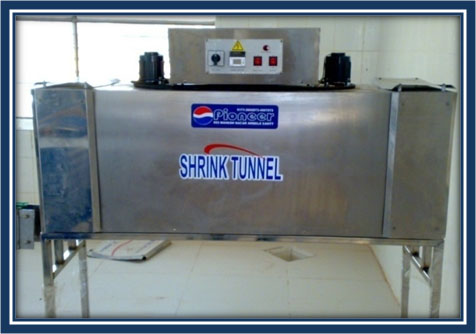

Shrink Tunnel
Model SW SK 1538
Power 5 KW
Max Packing Size (MM) 105*350H
Size Of Shrink Tunnel 800*150*380
Weight (APPROX) 50 KG
Dimension (MM) 800*430*1150
Packed Size (MM) 920*500*750

We manufacture and supply shrink tunnels that are primarily used to wrap the products of different shapes and sizes in an appropriate manner. Based on advanced technology, our shrink tunnel is considered to be an important part of shrink wrapping machines. These shrink tunnels are appreciated for consistent performance and durability.
Function
Sw sk 1538 series label shrinking machine are mainly applied to shrink label of product In bottle shape, cup shape, or barrel shape.

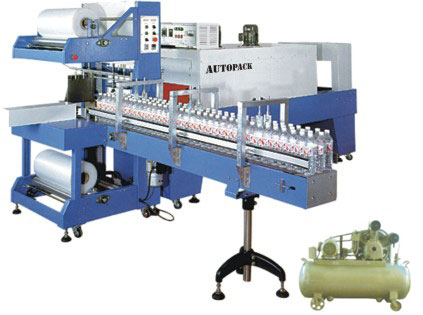

Shrink Wrapping & Packing Machine

Specification

Model

SP-FA-14

SP-FA-14

SP-FA-14

Voltage

220V, 50-60HZ

Power supply

3phase 220V/
380V 50-60HZ

Power

3KW

Heater power

27KW Adjuster

Capacity

0 - 10pcs/minute

Conveyer speed

0-10m/minute

Working air pressure

4 - 6kg/c

Tunnel size(L*W*H)

1800*600*400mm

Width/thickness of the film

Max. 590mm/0.03 - 0.25mm

Conveyer loading

25KGS MAX.

Max. packing dimension(L*W*H)

500*300*400mm

Machine size(L*W*H)

2800*880*1570mm

Min. packing dimension(L*W*H)

250*50*100mm

Machine weight

285KGS

Machine size(L*W*H)

1,060*1,600*1,930mm

Shrink film

PE,POF,PVC,PP

Machine weight

370kg

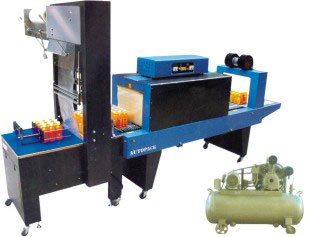

Shrink Wrapping & Packing Machine 2

Specification

Model

SP-A-15

SP-A-15

SP-A-15

Power supply

220-240V, 50-60Hz;1.8KW

Power supply

3phase 220V/
380V 50-60HZ

Capacity

2-5pcs/minute

Heater power

25KW Adjuster

Sealing time/shrink time

0.5-1.5s, 0-0.6s

Conveyer speed

0-10m/minute

Conveyor loading

30kg

Tunnel size(L*W*H)

1200*500*380mm

Film width

Max. 500mm

Conveyer loading

25Kkg MAX.

Film thickness

0.04-0.12mm

Shrink film

PE,POF,PVC,PP

Max. packing dimension(L*W*H)

450 x 270 x 350mm

Machine weight

250KG

Min. packing dimension(L*W*H)

250 x 60 x 60mm

Machine size

2200*780*1470mm

Machine size(L*W*H)

1020 x 830 x 1980mm






Shrink Wrapping & Packing Machine 4

Specification

Model

BSE4535A

BSE5040A

Power supply

3phase 220V/380V 50-60HZ

Heater power

18KW Adjuster

20KW Adjuster

Conveyer speed

0-10m/minute

Tunnel size(L*W*H)

1200*450*350MM

1500*500*400MM

Conveyer loading

50KGS MAX.

50KGS MAX.

Machine size

2200*770*1630MM

2500*820*1680MM

Machine weight

380KG

470KG


Shrink Wrapping & Packing Machine 8

Specification

Model

SP-SA-18

Voltage

220V 50Hz

Power

7.5KW

Conveyor speed

0-10m/min

Tunnel size(L*W*H)

800*400*200mm

Conveyor loading

5kg

Machine size (L*W*H)

1210*600*800mm



High Desk Strapping Machine

Type of KZ900 semi-automatic binding machine takes polythene plastic strap as binding material,which is mainly used in packaging and binding of paper carton,wooden case and paper parcel in sectors of business,postal service,railway,bank,food,pharmaceutical and publishing.Effcient and energy-saving in processing in a quality and speedy packaging fashion,the machine can automatically conduct strap collecting,thermal sealing,cutting andwith full automatic stopping operation.

TECHNICAL PARAMETERS


strapping speed

package size

Maxtigh-force

PPband widthq

voltage

power

weight

size(LxWxH)

1.6SEC/STRAP

any size

35kg

6mm-15mm

220V50Hz±10%

220V250W

100kg

940X620X850mm



Case-Sealing Machine

The Case-sealing Machine is mainly used in the sealing and packing of cartons ,which can be used either independently or as a necessary apparatus to a production line,It is widely used in the field of electrical domestic appliances,textiles,foodstuffs,general merchandise,medicine and chemical industry.

TECHNICAL PARAMETERS


Sealing Capacity

About1,000Standard Cases per Hour

Adhesive Tape used

Bopp.Water-Free Adhesive Tape,PVC Adhesive Tape

Widthof Adhesive Tape for sealing

36,48,60mm

Power Sources

220V,50HZ,180W

Max.Sealing Size

500X600mm

Min.Sealing Size.

150X90mm

Weight

120kg

Extermal Dimensions(LXHXW)

1060X860X1600mm


Taping Machine
CARTON SEALING MACHINE IS MAINLY USED IN THE SEALING > AND PACKING OF CARTONS WHICH CAN BE USED EITHER INDEPENDENTLY OR AS A NECESSARY APPARATUS TO A PRODUCTION LINE. IT IS WIDELY USED IN THE FIELD OF ELECTRICAL DOMESTIC APPLIANCES, TEXTILES,FOODSTUFFS, GENERAL MERCHANDISE, MEDICINE AND CHEMICAL INDUSTRY .
MODEL SW TP 6050
SEALING CAPACITY ABOUT 1000 STANDARD CASES/HR
ADHESIVE TAPE USED BOPP PVC ADHESIVE TAPE
WIDTH OF ADHESIVE TAPE 36, 46,60MM
POWER SOURCES 220 V, 50HZ, 180W
MAXIUM SEALING SIZE 500 X 600 MM
MINIUM SEALING SIZE 140 X 150MM


Automatic Machine

MODEL

SW AP 5050

Power Supply

220V/50-60HZ, 1 PHASE

Maximum Packing Dimension

(L)X500MM(W)X500MM(H)

Minium Packing Dimension

150MM(L)X180MM(W)X100MM(H)

Air Pressure Of Working

5KG/CM2

Loading weight

25 KG

Machine size

1170MM(L)X790MM(W)X1200MM(H)

Machine weight

125KG

Our complete line of semi automatic taping machine includes semi and fully automatic models to provide the best possible solution for any packaging application. Any size of tape can be adjusted in the machine. Twisting motion helps in tapping. All machines use pressure sensitive tape and can be ordered for 2" or 3" tape widths. Machines feature rugged construction and maintenance-free operation for maximum uptime.

Electrical Pad Printer


Product Description:



This machine is very useful to those product where there is need of the change of dates or batch no. is seen. You can change the dates or other no's, very easily. Even a single plate with dates is sufficient for nearly three year dates.


MODEL TDY-300C
Operating Mode Electromotive
Working Speed 3000 Strokes/Hour
Printing Area 15 x 50 mm
Printing Area  380 mm
Weight 21 Kg
Size (L x W x H) 435 x 405 x 560 mm

Straight Line Pad Printer


Specifications:



  • Fast printing speed, cute and clear letter form.
  • square and circular concave printing plate.
  • printing sign can be customized



Description:



ZXY-600 straight-line pad printer is suitable to printing notes and signs like
Manufacture date, numbers, trademarks, barcodes and simple patterns on various kinds of bottles, jugs, cups or boxes based on every type of material, with fast printing speed, cute and clear letterform.
